Let's invite A(R)lice from Wonderland to our browsers

Let's invite
A(R)lice from Wonderland
to our browsers

Paweł Kamiński
( kamyk_pl )

Paweł Kamiński
10+ around IT
before Java Full-Stack
now more JavaScript and front-ends
kamyk_pl LinkedIn
@iteratec

~400 Employees in 7 locations (Munich, Dusseldorf, Frankfurt, Hamburg, Stuttgart, Vienna, Wrocław)
Project for many kinds of German clients from startups to world wide leaders
Interesting ownership model
Of course we are hiring - www.iteratec.com/pl/career/

kamyk-pl.github.io/4-developers-alice/ qr code with link to presentation

Theory
Theory
Examples, Examples, Examples

AR - Augmented Reality

real world
extend by computer generated content

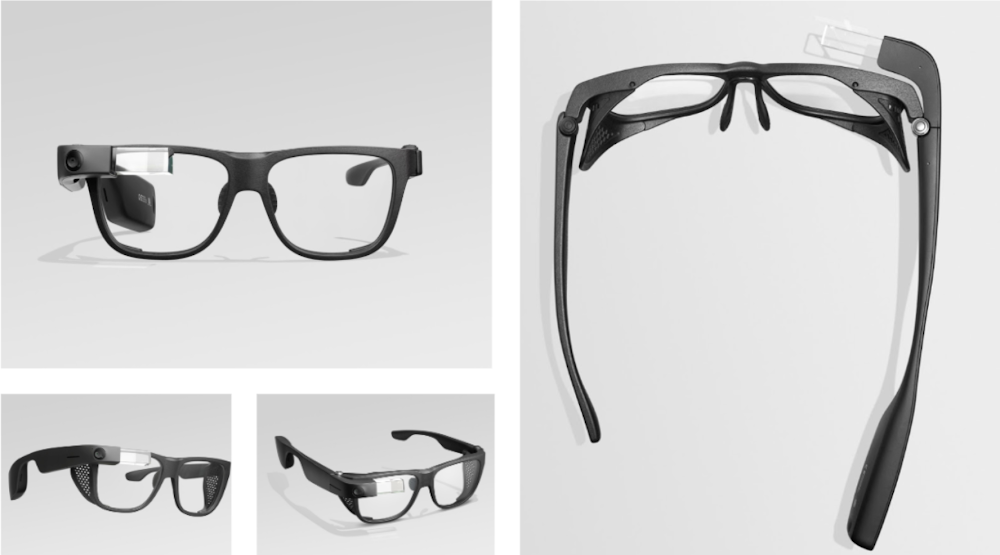

headset or mobile device required

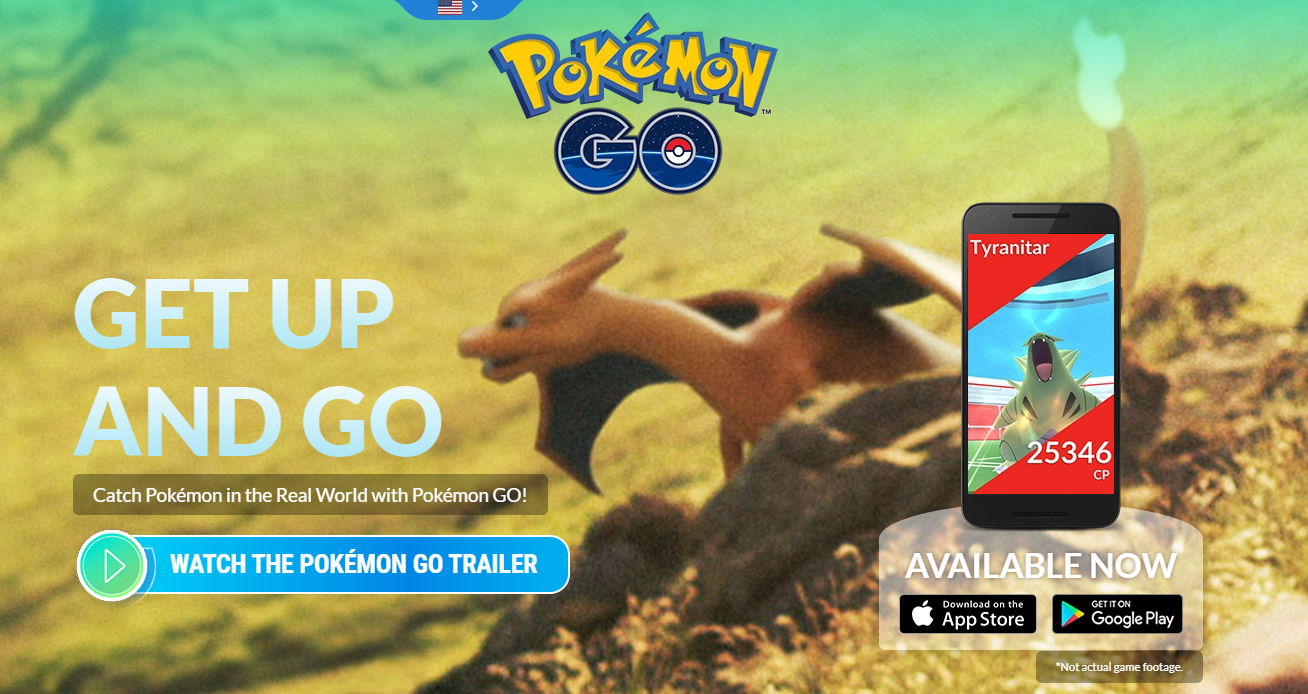

Pokemon Go
Mozzies

Symbian OS ~ 2003

The first proposed standard of Immersive Web working group at W3C
Mission:
We help bring high-performance Virtual Reality (VR) and Augmented Reality (AR) (collectively known as XR) to the open Web via APIs to interact with XR devices and sensors in browsers.
low level JavaScript API which exposes the VR/AR platform capabilities

W3C receives a Submission
W3C publishes a Note
W3C creates a Working Group
W3C publishes a Working Draft
W3C publishes a Candidate Recommendation
W3C publishes a Proposed Recommendation
W3C publishes a Recommendation

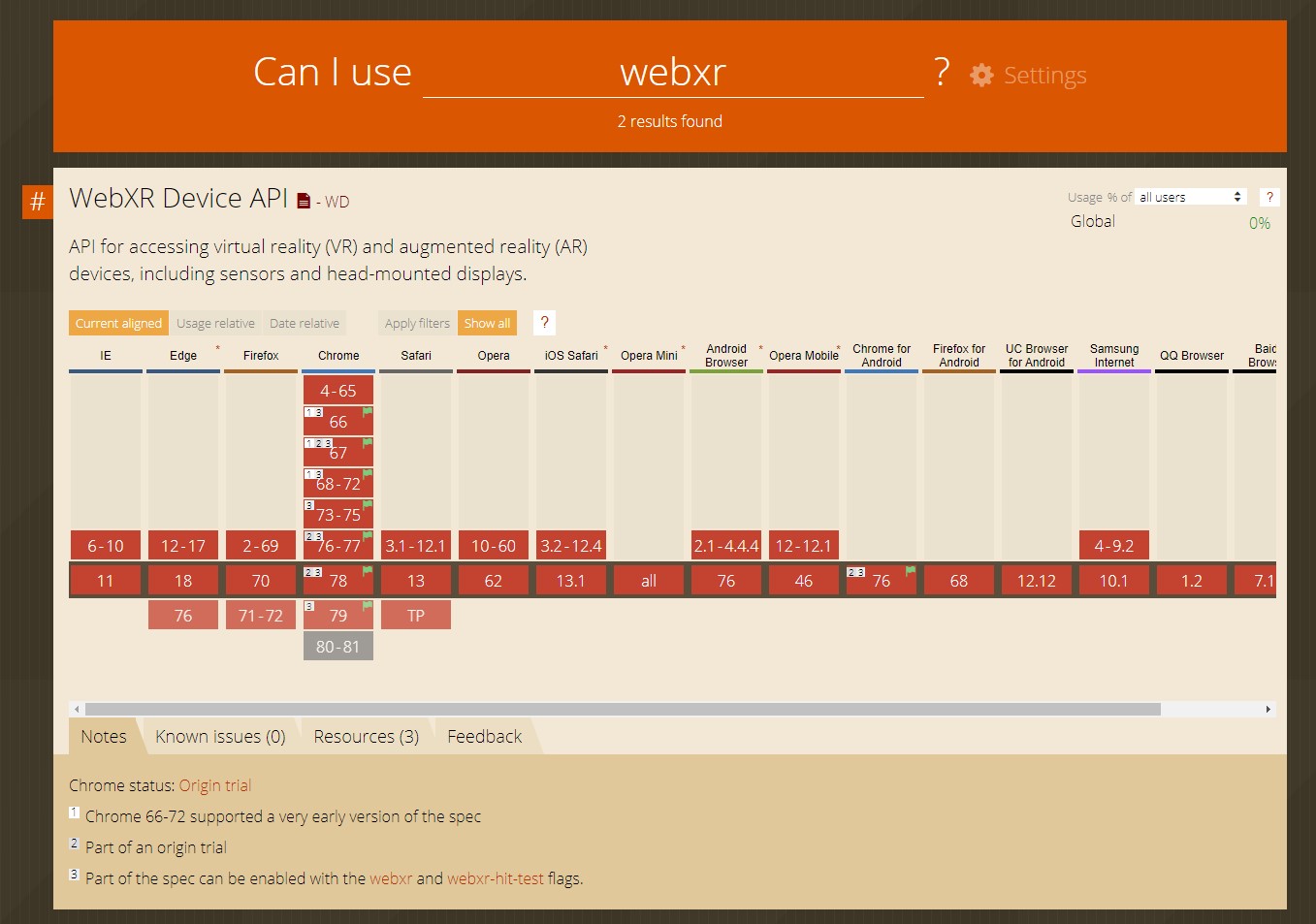

Status for 2019-10-28

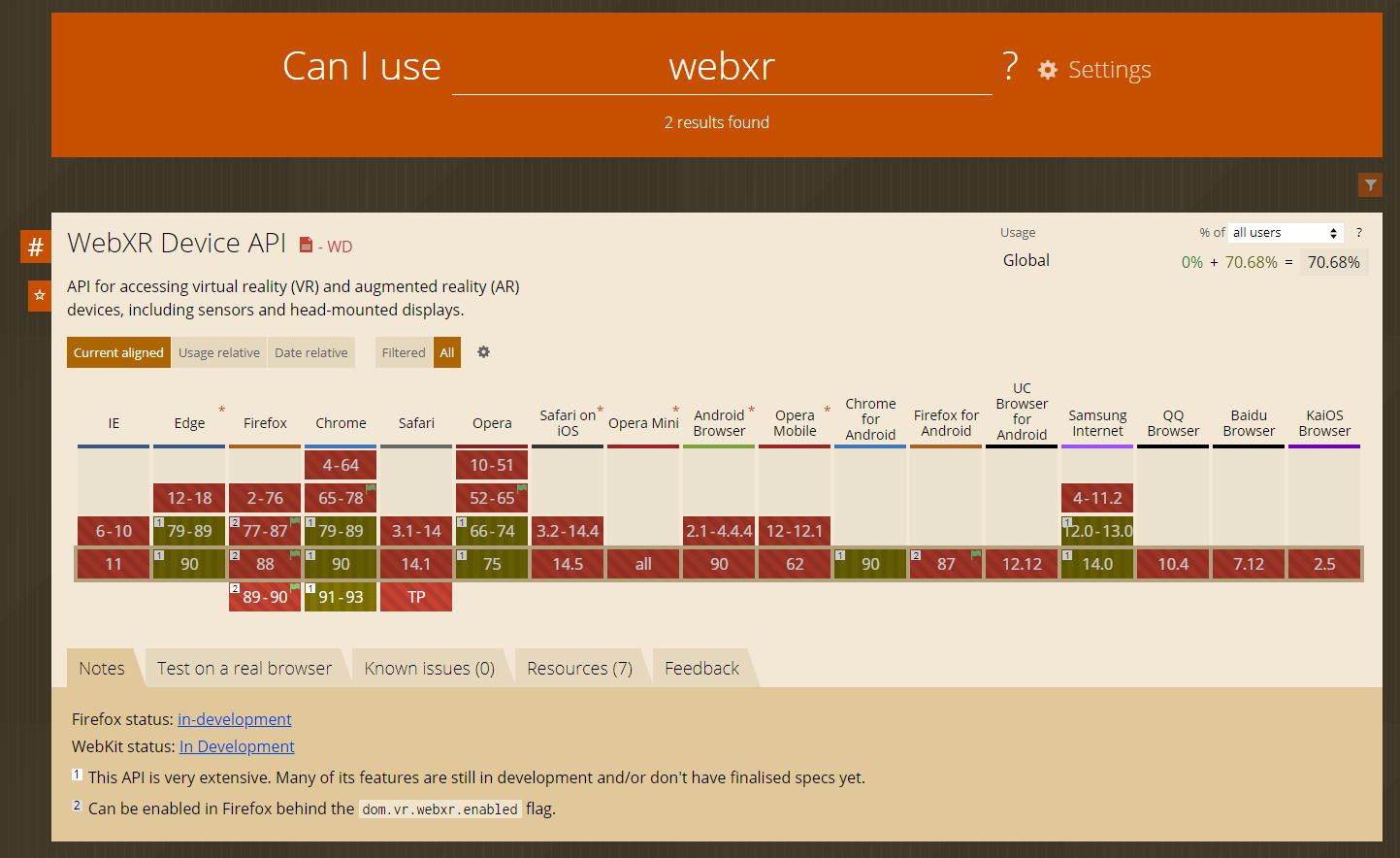

Status for 2021-05-11


 function initXR() {

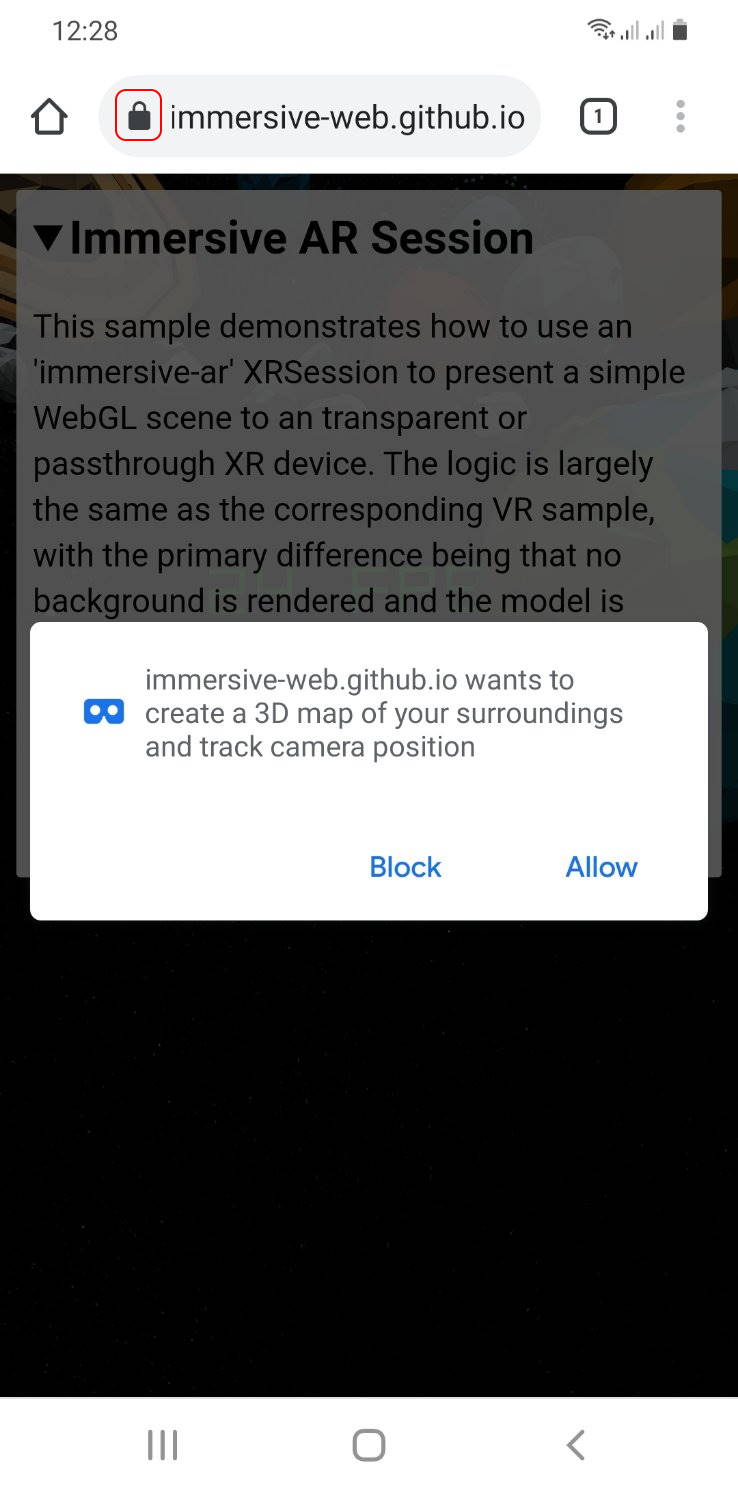

         if (!window.isSecureContext) {
             alert("AR experience requires https connection")
         }
         if (navigator.xr) {
             xrButton.addEventListener('click', onButtonClicked);
             navigator.xr.addEventListener('devicechange',
                                                checkSupportedState);
             checkSupportedState();
         }
     }
  function checkSupportedState() {
         navigator.xr.isSessionSupported('immersive-ar')
            .then((supported) => {
                 if (supported) {
                     xrButton.innerHTML = 'Enter AR';
              } else {
                     xrButton.innerHTML = 'AR not found';
                 }
                 xrButton.disabled = !supported;
            });
     }



     function onButtonClicked() {
       if (!xrSession) {
           navigator.xr.requestSession('immersive-ar', {})
              .then(onSessionStarted, () => {
                   alert("Failed to start immersive AR session.");
                   console.error(ex.message);
           });
       }
     }
     function onSessionStarted(session) {
       xrSession = session;
       session.addEventListener('end', onSessionEnded);
       let canvas = document.createElement('canvas');
       gl = canvas.getContext('webgl', {
           xrCompatible: true
       });
       session.updateRenderState({baseLayer: new XRWebGLLayer(session,gl)});
       session.requestReferenceSpace('local').then((refSpace) => {
           xrRefSpace = refSpace;
           session.requestAnimationFrame(onXRFrame);
       });
     }


const width = session.renderState.baseLayer.framebufferWidth;
const height = session.renderState.baseLayer.framebufferHeight;
gl.enable(gl.SCISSOR_TEST);
gl.bindFramebuffer(gl.FRAMEBUFFER,
                           session.renderState.baseLayer.framebuffer);
gl.scissor(width / 4, height / 4, width / 2, height / 2);
gl.clearColor(0, 255, 0, 0.5);
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);


import ...

let camera, scene, renderer;

init();
animate();

function init() {
 ...
 drawScene()
 ...
}

function animate() {...}

function render() {...}

function drawScene() {...}


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                          /jsm/webxr/ARButton.js';

    let camera, scene, renderer;

    init();
    animate();


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                          /jsm/webxr/ARButton.js';

    let camera, scene, renderer;

    init();
    animate();


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                          /jsm/webxr/ARButton.js';

    let camera, scene, renderer;

    init();
    animate();


function init() {
 const container = document.createElement('div');
 document.body.appendChild(container);
 scene = new THREE.Scene();
 camera = new THREE.PerspectiveCamera(70, window.innerWidth
                               / window.innerHeight, 0.01, 20);

 renderer = new THREE.WebGLRenderer({antialias: true, alpha: true});
 renderer.setPixelRatio(window.devicePixelRatio);
 renderer.setSize(window.innerWidth, window.innerHeight);
 renderer.xr.enabled = true;
 container.appendChild(renderer.domElement);
 document.body.appendChild(ARButton.createButton(renderer, {}));

 drawScene();

 window.addEventListener('resize', ()=> {
     camera.aspect = window.innerWidth / window.innerHeight;
     camera.updateProjectionMatrix();
     renderer.setSize(window.innerWidth, window.innerHeight);
 });
}
              |


function init() {
 const container = document.createElement('div');
 document.body.appendChild(container);
 scene = new THREE.Scene();
 camera = new THREE.PerspectiveCamera(70, window.innerWidth
                               / window.innerHeight, 0.01, 20);

 renderer = new THREE.WebGLRenderer({antialias: true, alpha: true});
 renderer.setPixelRatio(window.devicePixelRatio);
 renderer.setSize(window.innerWidth, window.innerHeight);
 renderer.xr.enabled = true;
 container.appendChild(renderer.domElement);
 document.body.appendChild(ARButton.createButton(renderer, {}));

 drawScene();

 window.addEventListener('resize', ()=> {
     camera.aspect = window.innerWidth / window.innerHeight;
     camera.updateProjectionMatrix();
     renderer.setSize(window.innerWidth, window.innerHeight);
 });
}
              |


function init() {
 const container = document.createElement('div');
 document.body.appendChild(container);
 scene = new THREE.Scene();
 camera = new THREE.PerspectiveCamera(70, window.innerWidth
                               / window.innerHeight, 0.01, 20);

 renderer = new THREE.WebGLRenderer({antialias: true, alpha: true});
 renderer.setPixelRatio(window.devicePixelRatio);
 renderer.setSize(window.innerWidth, window.innerHeight);
 renderer.xr.enabled = true;
 container.appendChild(renderer.domElement);
 document.body.appendChild(ARButton.createButton(renderer, {}));

 drawScene();

 window.addEventListener('resize', ()=> {
     camera.aspect = window.innerWidth / window.innerHeight;
     camera.updateProjectionMatrix();
     renderer.setSize(window.innerWidth, window.innerHeight);
 });
}
              |


function init() {
 const container = document.createElement('div');
 document.body.appendChild(container);
 scene = new THREE.Scene();
 camera = new THREE.PerspectiveCamera(70, window.innerWidth
                               / window.innerHeight, 0.01, 20);

 renderer = new THREE.WebGLRenderer({antialias: true, alpha: true});
 renderer.setPixelRatio(window.devicePixelRatio);
 renderer.setSize(window.innerWidth, window.innerHeight);
 renderer.xr.enabled = true;
 container.appendChild(renderer.domElement);
 document.body.appendChild(ARButton.createButton(renderer, {}));

 drawScene();

 window.addEventListener('resize', ()=> {
     camera.aspect = window.innerWidth / window.innerHeight;
     camera.updateProjectionMatrix();
     renderer.setSize(window.innerWidth, window.innerHeight);
 });
}
              |


function init() {
 const container = document.createElement('div');
 document.body.appendChild(container);
 scene = new THREE.Scene();
 camera = new THREE.PerspectiveCamera(70, window.innerWidth
                               / window.innerHeight, 0.01, 20);

 renderer = new THREE.WebGLRenderer({antialias: true, alpha: true});
 renderer.setPixelRatio(window.devicePixelRatio);
 renderer.setSize(window.innerWidth, window.innerHeight);
 renderer.xr.enabled = true;
 container.appendChild(renderer.domElement);
 document.body.appendChild(ARButton.createButton(renderer, {}));

 drawScene();

 window.addEventListener('resize', ()=> {
     camera.aspect = window.innerWidth / window.innerHeight;
     camera.updateProjectionMatrix();
     renderer.setSize(window.innerWidth, window.innerHeight);
 });
}
              |


function animate() {
   renderer.setAnimationLoop(render);
}


    function render() {
         renderer.render(scene, camera);
     }


        function drawScene() {
             const materials = [
                 new THREE.MeshBasicMaterial({color: 0xff0000}),
                 new THREE.MeshBasicMaterial({color: 0x0000ff}),
                 new THREE.MeshBasicMaterial({color: 0x00ff00}),
                 new THREE.MeshBasicMaterial({color: 0xff00ff}),
                 new THREE.MeshBasicMaterial({color: 0x00ffff}),
                 new THREE.MeshBasicMaterial({color: 0xffff00})
             ];


             const cube = new THREE.Mesh(
                             new THREE.BoxBufferGeometry(0.05, 0.05, 0.05)
                               , materials);
             cube.position.set(0, 0, -0.3);
             scene.add(cube);
         }


        function drawScene() {
             const materials = [
                 new THREE.MeshBasicMaterial({color: 0xff0000}),
                 new THREE.MeshBasicMaterial({color: 0x0000ff}),
                 new THREE.MeshBasicMaterial({color: 0x00ff00}),
                 new THREE.MeshBasicMaterial({color: 0xff00ff}),
                 new THREE.MeshBasicMaterial({color: 0x00ffff}),
                 new THREE.MeshBasicMaterial({color: 0xffff00})
             ];


             const cube = new THREE.Mesh(
                             new THREE.BoxBufferGeometry(0.05, 0.05, 0.05)
                               , materials);
             cube.position.set(0, 0, -0.3);
             scene.add(cube);
         }


<div id="info">
    <p>My first Three.js AR example</p>
    <a href="/">Back</a>
</div>


function init() {
 const container = document.createElement('div');
 document.body.appendChild(container);
 scene = new THREE.Scene();
 camera = new THREE.PerspectiveCamera(70, window.innerWidth
                               / window.innerHeight, 0.01, 20);

 renderer = new THREE.WebGLRenderer({antialias: true, alpha: true});
 renderer.setPixelRatio(window.devicePixelRatio);
 renderer.setSize(window.innerWidth, window.innerHeight);
 renderer.xr.enabled = true;
 container.appendChild(renderer.domElement);
 document.body.appendChild(ARButton.createButton(renderer, {}));

 const light = new THREE.HemisphereLight(0xffffff, 0xbbbbff, 1);
 light.position.set(0.5, 1, 0.25);
 scene.add(light);

 drawScene();

...


        function drawScene() {
             const materials = [
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/pers.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/dev.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/4dev.png')}),
               new THREE.MeshBasicMaterial({color: 0x00ff00}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/elo.png')}),
               new THREE.MeshBasicMaterial({color: 0x00ffff}),
             ];

             const cube = new THREE.Mesh(
                             new THREE.BoxBufferGeometry(0.05, 0.05, 0.05)
                               , materials);
             cube.position.set(0, 0, -0.3);
             scene.add(cube);
         }


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                          /jsm/webxr/ARButton.js';

    let camera, scene, renderer, controller;

    init();
    animate();


function init() {
 ...

 const light = new THREE.HemisphereLight(0xffffff, 0xbbbbff, 1);
 light.position.set(0.5, 1, 0.25);
 scene.add(light);

 controller = renderer.xr.getController(0);
 controller.addEventListener('select', onSelect);
 scene.add(controller);

 function onSelect() {
       drawScene();
  }

...


        function drawScene() {
             const materials = [
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/pers.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/dev.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/4dev.png')}),
               new THREE.MeshBasicMaterial({color: 0x00ff00}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/elo.png')}),
               new THREE.MeshBasicMaterial({color: 0x00ffff}),
             ];

             const cube = new THREE.Mesh(
                             new THREE.BoxBufferGeometry(0.05, 0.05, 0.05)
                               , materials);
             cube.position.set(0, 0, -0.3).applyMatrix4(controller.matrixWorld);
             scene.add(cube);
         }


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                          /jsm/webxr/ARButton.js';

    let camera, scene, renderer, controller;
    const cubes = [];

    init();
    animate();


        function drawScene() {
             const materials = [
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/pers.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/dev.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/4dev.png')}),
               new THREE.MeshBasicMaterial({color: 0x00ff00}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/elo.png')}),
               new THREE.MeshBasicMaterial({color: 0x00ffff}),
             ];

             const cube = new THREE.Mesh(
                             new THREE.BoxBufferGeometry(0.05, 0.05, 0.05)
                               , materials);
             cube.position.set(0, 0, -0.3).applyMatrix4(controller.matrixWorld);
             cubes.push(cube);
             scene.add(cube);
         }


    function render() {
       cubes.forEach((c, i) => {
         if (i % 3 == 0) {
             c.rotation.x =
                    c.rotation.x - Math.PI / 300
         } else if (i % 3 == 1) {
             c.rotation.y =
                    c.rotation.y - Math.PI / 300
         } else if (i % 3 == 2) {
             c.rotation.z =
                    c.rotation.z - Math.PI / 300
         }
      });

      renderer.render(scene, camera);
     }


  <video id="video"
         loop
         muted
         crossOrigin="anonymous"
         playsinline
         style="display:none">
      <source src="res/video.mp4">
  </video>

  <div id="info">
      <p>Three.js example with video</p>
      <a href="/">Back</a>
  </div>


        function drawScene() {
             const video = document.getElementById('video');
             video.play();
             const materials = [
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/pers.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/dev.png')}),
               new THREE.MeshPhongMaterial({map: new THREE.VideoTexture(video)}),
               new THREE.MeshBasicMaterial({color: 0x00ff00}),
               new THREE.MeshPhongMaterial({map: new THREE.TextureLoader()
                                                              .load('res/elo.png')}),
               new THREE.MeshBasicMaterial({color: 0x00ffff}),
             ];
             const cube = new THREE.Mesh(
                             new THREE.BoxBufferGeometry(0.05, 0.05, 0.05)
                               , materials);
             cube.position.set(0, 0, -0.3).applyMatrix4(controller.matrixWorld);
             cubes.push(cube);
             scene.add(cube);
         }


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                        /jsm/webxr/ARButton.js';

    import {GLTFLoader} from './three/examples/
                       /jsm/loaders/GLTFLoader.js';

    let camera, scene, renderer, controller;

    init();
    animate();


function init() {
 ...

 const light = new THREE.HemisphereLight(0xffffff, 0xbbbbff, 1);
 light.position.set(0.5, 1, 0.25);
 scene.add(light);

 controller = renderer.xr.getController(0);
 controller.addEventListener('select', onSelect);
 scene.add(controller);

 function onSelect() {
       drawScene();
  }

...

   function drawScene() {
      const loader = new GLTFLoader();
      loader.load('./models/dodo/scene.gltf',
           (gltf) => {
               const model = gltf.scene;
               model.position.set(0, 0, -0.3)
                                .applyMatrix4(controller.matrixWorld);
               model.scale.set(0.01, 0.01, 0.01)
               scene.add(model);
           },
           (xhr) => console.log((xhr.loaded / xhr.total * 100) + '% loaded'),
           (e) => console.error(e)
        );
 }

   function drawScene() {
      const loader = new GLTFLoader();
      loader.load('./models/dodo/scene.gltf',
           (gltf) => {
               const model = gltf.scene;
               model.position.set(0, 0, -0.3)
                                .applyMatrix4(controller.matrixWorld);
               model.scale.set(0.01, 0.01, 0.01)
               scene.add(model);
           },
           (xhr) => console.log((xhr.loaded / xhr.total * 100) + '% loaded'),
           (e) => console.error(e)
        );
 }

   function drawScene() {
      const loader = new GLTFLoader();
      loader.load('./models/dodo/scene.gltf',
           (gltf) => {
               const model = gltf.scene;
               model.position.set(0, 0, -0.3)
                                .applyMatrix4(controller.matrixWorld);
               model.scale.set(0.01, 0.01, 0.01)
               scene.add(model);
           },
           (xhr) => console.log((xhr.loaded / xhr.total * 100) + '% loaded'),
           (e) => console.error(e)
        );
 }

   function drawScene() {
      const loader = new GLTFLoader();
      loader.load('./models/dodo/scene.gltf',
           (gltf) => {
               const model = gltf.scene;
               model.position.set(0, 0, -0.3)
                                .applyMatrix4(controller.matrixWorld);
               model.scale.set(0.01, 0.01, 0.01)
               scene.add(model);
           },
           (xhr) => console.log((xhr.loaded / xhr.total * 100) + '% loaded'),
           (e) => console.error(e)
        );
 }


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                        /jsm/webxr/ARButton.js';

    import {GLTFLoader} from './three/examples/
                       /jsm/loaders/GLTFLoader.js';

    let camera, scene, renderer, controller, mixer, clock;


    init();
    animate();


function init() {
 ...

 const light = new THREE.HemisphereLight(0xffffff, 0xbbbbff, 1);
 light.position.set(0.5, 1, 0.25);
 scene.add(light);

 controller = renderer.xr.getController(0);
 controller.addEventListener('select', onSelect);
 scene.add(controller);

 clock = new THREE.Clock();

 function onSelect() {
       drawScene();
  }

...


    function render() {
       if (mixer) {
            mixer.update(clock.getDelta());
        }

        renderer.render(scene, camera);
     }

   function drawScene() {
      const loader = new GLTFLoader();
      loader.load('./models/dodo/scene.gltf',
           (gltf) => {
               const model = gltf.scene;
               model.position.set(0, 0, -0.3)
                                .applyMatrix4(controller.matrixWorld);
               model.scale.set(0.01, 0.01, 0.01)
               scene.add(model);

               mixer = new THREE.AnimationMixer(model);
               const animation = gltf.animations[0];
               mixer.clipAction(animation).play();
           },
           (xhr) => console.log((xhr.loaded / xhr.total * 100) + '% loaded'),
           (e) => console.error(e)
        );
 }


    import * as THREE from 'three';
    import {ARButton}
             from './three/examples
                        /jsm/webxr/ARButton.js';

    import {GLTFLoader} from './three/examples/
                       /jsm/loaders/GLTFLoader.js';

    let camera, scene, renderer, controller, mixer, clock;

    let reticle;
    let hitTestSource = null;
    let hitTestSourceRequested = false

    init();
    animate();


function init() {
 ...
 document.body.appendChild(ARButton.createButton(renderer,
                                        {requiredFeatures: ['hit-test']}));
 ...
 clock = new THREE.Clock();

 reticle = new THREE.Mesh(
      new THREE.RingGeometry(0.15, 0.2, 32).rotateX(-Math.PI / 2),
      new THREE.MeshBasicMaterial()
  );
 reticle.matrixAutoUpdate = false;
 reticle.visible = false;
 scene.add(reticle);

 function onSelect() {
       if(reticle.visible){
             drawScene();
       }
  }
 ...


function init() {
 ...
 document.body.appendChild(ARButton.createButton(renderer,
                                        {requiredFeatures: ['hit-test']}));
 ...
 clock = new THREE.Clock();

 reticle = new THREE.Mesh(
      new THREE.RingGeometry(0.15, 0.2, 32).rotateX(-Math.PI / 2),
      new THREE.MeshBasicMaterial()
  );
 reticle.matrixAutoUpdate = false;
 reticle.visible = false;
 scene.add(reticle);

 function onSelect() {
       if(reticle.visible){
             drawScene();
       }
  }
 ...


function init() {
 ...
 document.body.appendChild(ARButton.createButton(renderer,
                                        {requiredFeatures: ['hit-test']}));
 ...
 clock = new THREE.Clock();

 reticle = new THREE.Mesh(
      new THREE.RingGeometry(0.15, 0.2, 32).rotateX(-Math.PI / 2),
      new THREE.MeshBasicMaterial()
  );
 reticle.matrixAutoUpdate = false;
 reticle.visible = false;
 scene.add(reticle);

 function onSelect() {
       if(reticle.visible){
             drawScene();
       }
  }
 ...


    function render(_, frame) {
       if (mixer) {
            mixer.update(clock.getDelta());
        }
       if (frame) {
            const referenceSpace = renderer.xr.getReferenceSpace();
            const session = renderer.xr.getSession();
            if (hitTestSourceRequested === false) {
                session.requestReferenceSpace('viewer')
                                       .then((referenceSpace) => {
                    session.requestHitTestSource({space: referenceSpace})
                                        .then((source)=> {
                        hitTestSource = source;
                    });
                });
                session.addEventListener('end', function () {
                    hitTestSourceRequested = false;
                    hitTestSource = null;
                });
                hitTestSourceRequested = true;
            }
           ...


    function render(_, frame) {
           ...
            if (hitTestSource) {
                const hitTestResults = frame.getHitTestResults(hitTestSource);
                if (hitTestResults.length) {
                    const hit = hitTestResults[0];
                    reticle.visible = true;
                    reticle.matrix.fromArray(hit.getPose(referenceSpace)
                                                           .transform.matrix);
                } else {
                    reticle.visible = false;
                }
            }
        }
        renderer.render(scene, camera);
     }


<html lang="en">
<head>
    <title>Model Viewer</title>
    <script type="module" src="https://unpkg.com/@google/model-viewer/
                                          dist/model-viewer.min.js"></script>
    <link type="text/css" rel="stylesheet" href="css/main.css">
</head>
<body>
<div id="info">
    <p>Model Viewer</p>
    <a href="/">Back</a>
</div>
<div style="width: 800px; height: 600px">
    <model-viewer src="/models/dodo/scene.gltf"
                  alt="A 3D model of dodo bird"
                  autoplay auto-rotate camera-controls
                  ar ar-scale="auto"
                  ar-modes="webxr scene-viewer quick-look"
                  style="width: 100%; height: 100%" ;
    >
    </model-viewer>


<html lang="en">
<head>
    <title>Model Viewer</title>
    <script type="module" src="https://unpkg.com/@google/model-viewer/
                                          dist/model-viewer.min.js"></script>
    <link type="text/css" rel="stylesheet" href="css/main.css">
</head>
<body>
<div id="info">
    <p>Model Viewer</p>
    <a href="/">Back</a>
</div>
<div style="width: 800px; height: 600px">
    <model-viewer src="/models/dodo/scene.gltf"
                  alt="A 3D model of dodo bird"
                  autoplay auto-rotate camera-controls
                  ar ar-scale="auto"
                  ar-modes="webxr scene-viewer quick-look"
                  style="width: 100%; height: 100%" ;
    >
    </model-viewer>


    <model-viewer src="models/chair/chair.glb"
                  autoplay auto-rotate camera-controls
                  alt="A 3D model of a chair"
                  ar ar-scale="auto"
                  ar-modes="webxr scene-viewer quick-look"
                  style="width: 100%; height: 100%" ;
    >
    </model-viewer>
</div>
</body>
</html>

pros

no installation
no mobile stores restrictions
fast implementation (one app all platforms *)
low entry threshold
instant updates

pros

security
extend current websites
it is our playground with our tools
(Dev Tools, Npm, VisualCode, ...)

cons

it is not yet production ready
offline resources
performance
web limitation (saving files, offline mode, ...)

lack of 3D models

Poly, SketchFab
difficult editing of 3D models

size of models => Dodo weigth ~13MB
lack of UI guidelines and good practices

Let's inviteA(R)lice from Wonderlandto our browsers

About me

Link to presentation

Agenda

Glossary

AR - Augmented Reality

Why

Been there done that

WebXR

WebXR W3C Status

Can I use WebXR

Can I use WebXR

The best way to explain it is to do it

Disclaimer

Follow me

WebXR Requirements

Pure JS AR Example

Request AR session

Request AR session

WebGl to draw rectangle

Code overview

import

Three.js global objects

calling function

initialize scene and camera

initialize renderer

add ARButton

call drawScene

window resize handler

Code animate

Code render

Code drawScene

Code drawScene

Code html

First Three.js example

add light

Use images

Three.js example with images

add controller

add onSelect

Use images

Three.js example with interaction

cubes arrays

Use images

Code render

Three.js example with animation

Video html element

Use video

Three.js example with video

GLTFLoader import

onSelect

Gltf loader

Gltf loader success

Gltf loader progress

Gltf loader failure

Three.js model

mixer and clock

clock

mixer update

play-animation

Three.js model animation

reticle

request hit-test

build rectile

only if reticle.visible

request ReferenceSpace

reticle visibility

Three.js surface detection

Model Viewer

model viewer import

model viewer usage

model viewer usage

Model Viewer

Alice

web vs native apps

pros

web vs native apps

pros

web vs native apps

cons

Let's invite
A(R)lice from Wonderland
to our browsers
